Floor Plan

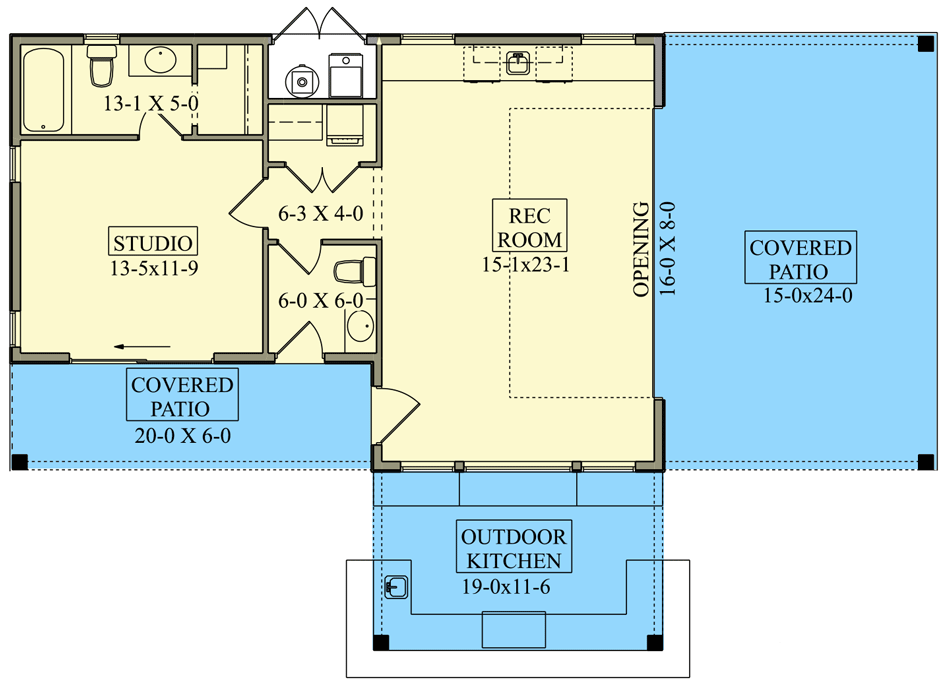

Main Level
Plan Details
- This pool house plan has a 16′ by 8′ garage door – a glass garage door – that connects the vaulted rec room with bar to the covered patio on the side.
- In front, an outdoor kitchen sits under a covered roof giving you a great place to enjoy the views and cook up food for your friends and family.
- A studio has sliding doors that open to the covered patio and has its own full bath. It makes a great guest house for friends staying for the weekend.
What’s Included
- Cover Page

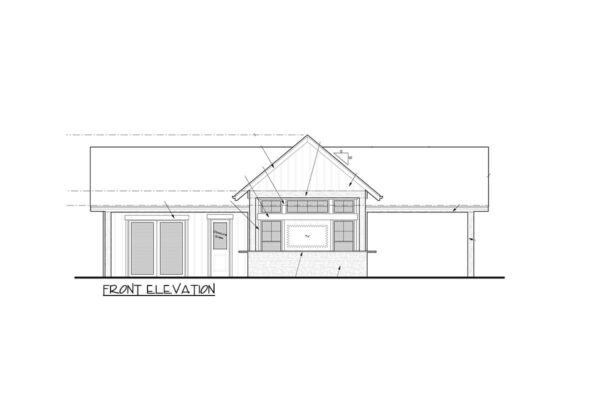

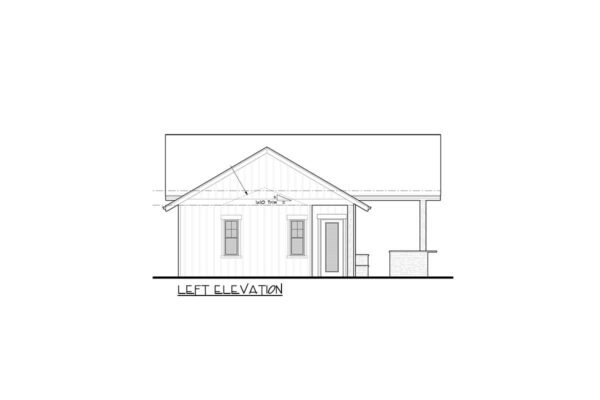

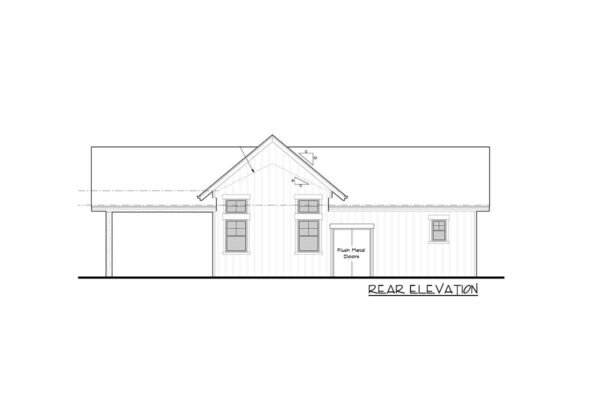

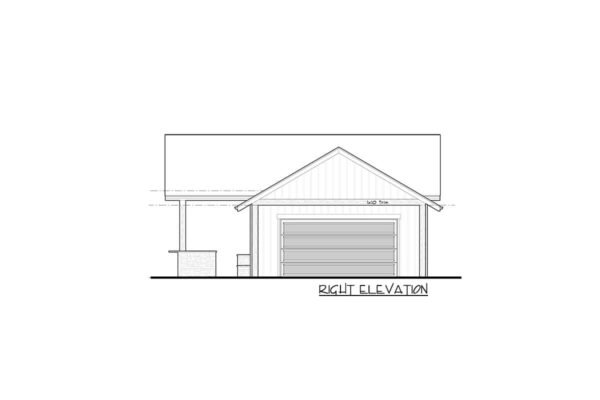

- All Four Exterior Elevations (front, left, rear and right)
- Dimensioned Floor Plans
- Foundation Plan (with no specifications of structural elements)
- Roof Plan (with no specifications of structural elements)
- Typical Wall Sections
- Electrical plan
What’s Not Included
- Architectural or Engineering Stamp – handled locally if required
- Site Plan – handled locally when required
- Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
- REScheck or other energy related calculations are NOT included.
- Wind load or seismic calculations are NOT included.
- Framing plans or beam sizes are NOT included.
- Other specific drawings that your local permit office may requires
