New American Ranch with Spacious Outdoor Living Areas

Main Level

Plan Details

• This New American house plan offers a fresh exterior to the classic Ranch layout, complete with steeply-pitched gables with deep overhanging eaves.
• A 10′-deep front porch with a morning patio welcomes you inside, where a family room boasts exposed beams, a fireplace, and access to the elongated rear deck.
• The spacious kitchen is a chef’s dream with its island, secondary prep sink, and easy access to the adjoining dining room.
• A home office is tucked behind the kitchen with rear-facing views and shares a wall with the walk-in pantry and laundry room.
• The owner’s suite provides privacy with the secluded location and boasts a deluxe ensuite and oversized wardrobe.

What’s Included

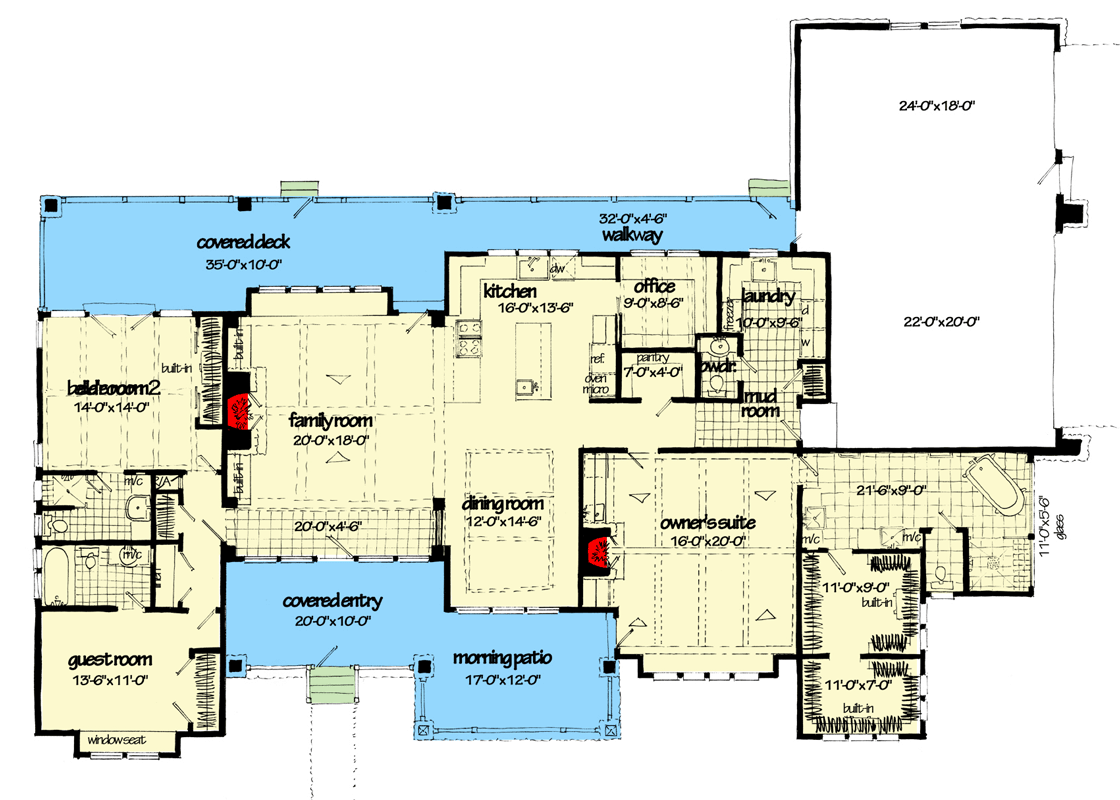

• Floor plans at ¼” scale

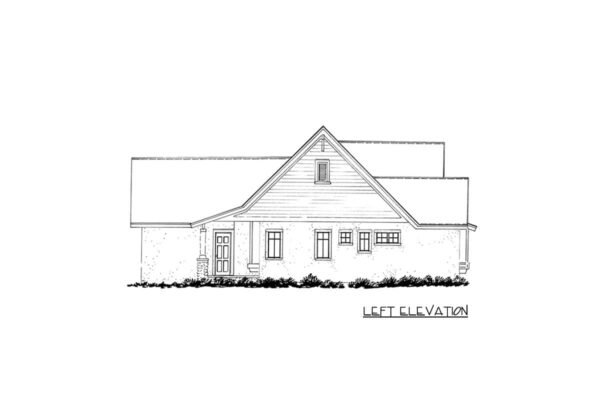

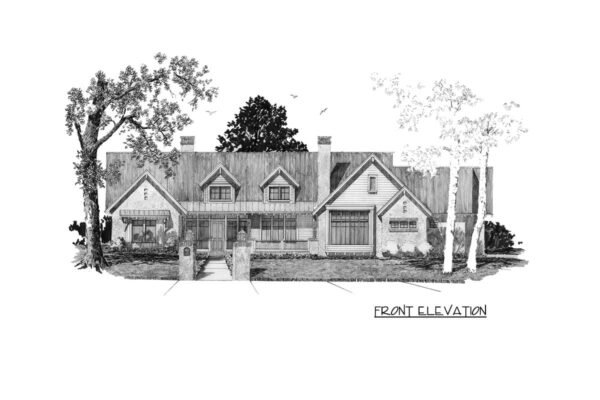

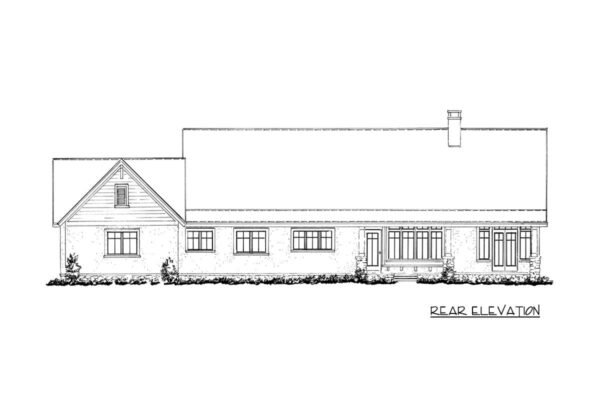

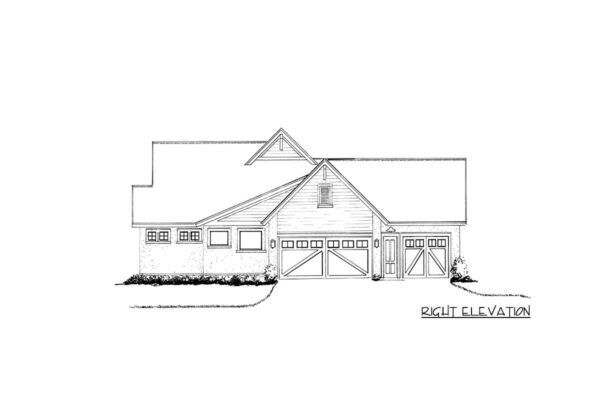

• All exterior elevations at ¼” scale
• Roof plan at ¼” scale
• Building sections at ¼” scale
• Completed foundation plan at ¼” scale
• Completed floor/roof framing plan at ¼” scale
• Building height profiles at ¼” scale
• Door and window schedules
• General construction notes and building schedules
• Exterior finish schedule
• Architectural details
• Construction details for cabinets, interior built-ins and stairs
• Designations for all floor, wall and ceiling surfaces
• Details and specifications for all ceiling treatments
• All square footage calculations

What’s Not Included

• Architectural or Engineering Stamp – handled locally if required
• Site Plan – handled locally when required
• Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
• Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
• Energy calculations – handled locally when required
