Floor Plan

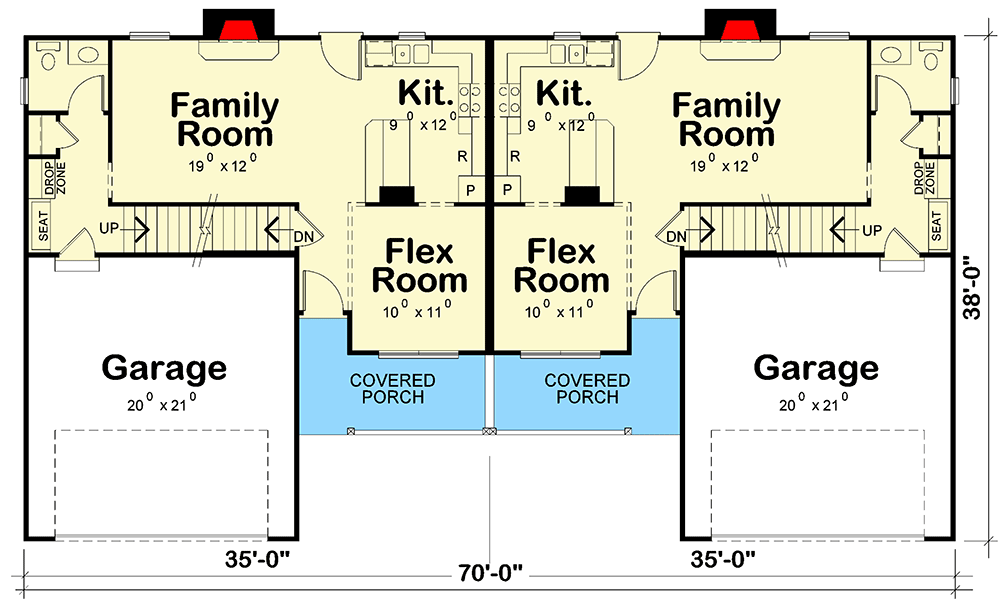

Main Level

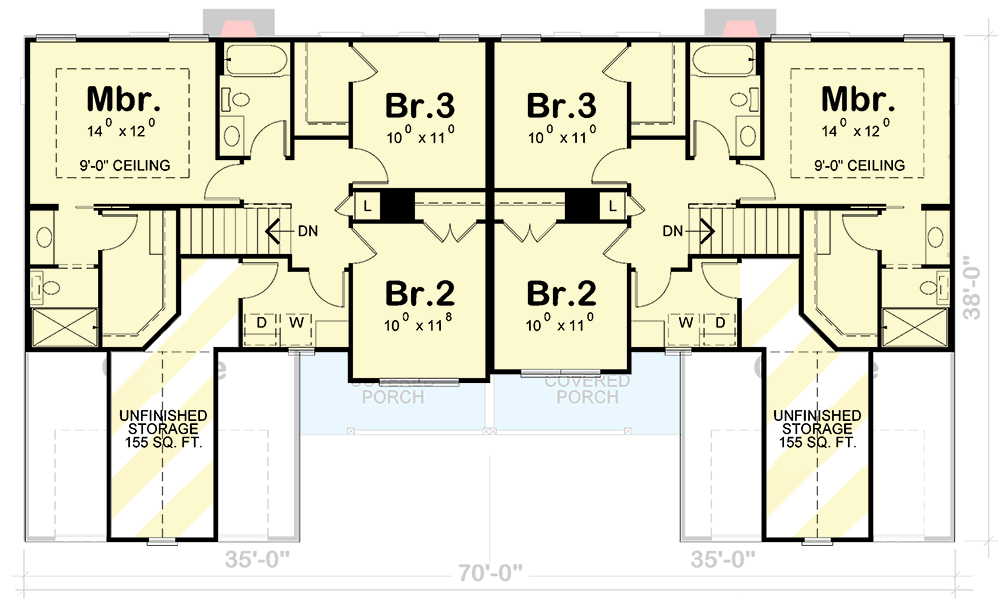

2nd Floor
Plan Details
- This New American duplex house plan gives you identical 1,467 square foot units (679 square feet on the main floor and 788 square feet on the upper floor).
- Each unit gets its own 2-car garage (439 square feet).
- All 3 bedrooms are on the second floor as is laundry for your convenience. Beds 2 and 3 share a hall bath while the master suite with tray ceiling enjoys an ensuite bath and a roomy walk-in closet.
What’s Included
- General Notes

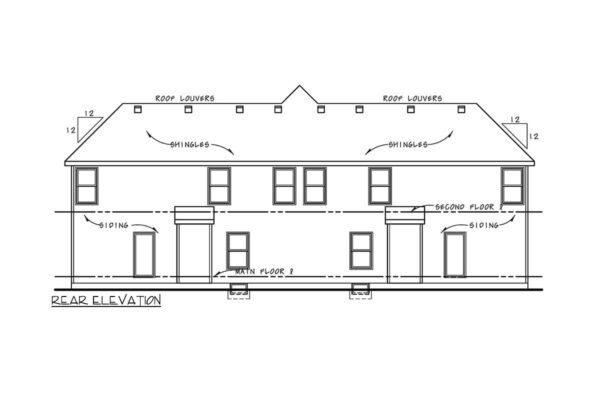

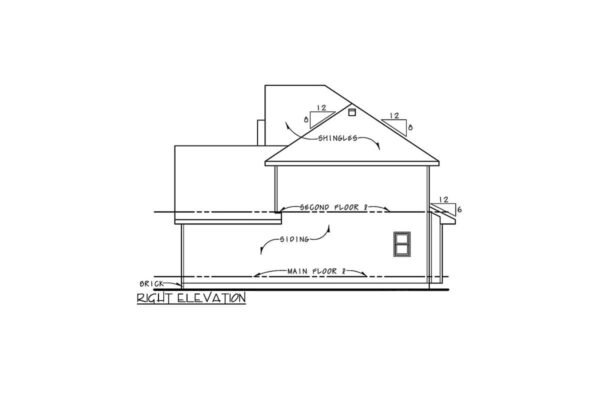

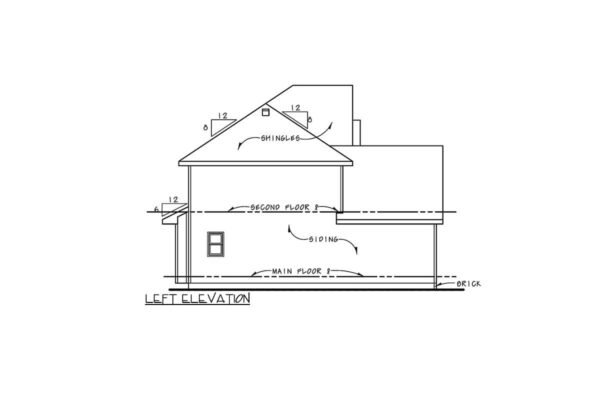

- Front, Rear, Left, Right Elevations
- Roof Plan – Birds Eye View
- Foundation plan, Wall Section, Stair Section
- Main Level Floor Plan
- Second Level Floor Plan (if applicable)
- Electrical Plan (showing fixtures, switches, outlets)
- *Some plans include cabinet elevations. Please contact us for more information.
What’s Not Included
- Architectural or Engineering Stamp – handled locally if required
- Site Plan – handled locally when required
- Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
- Energy calculations – handled locally when required
