Floor Plan

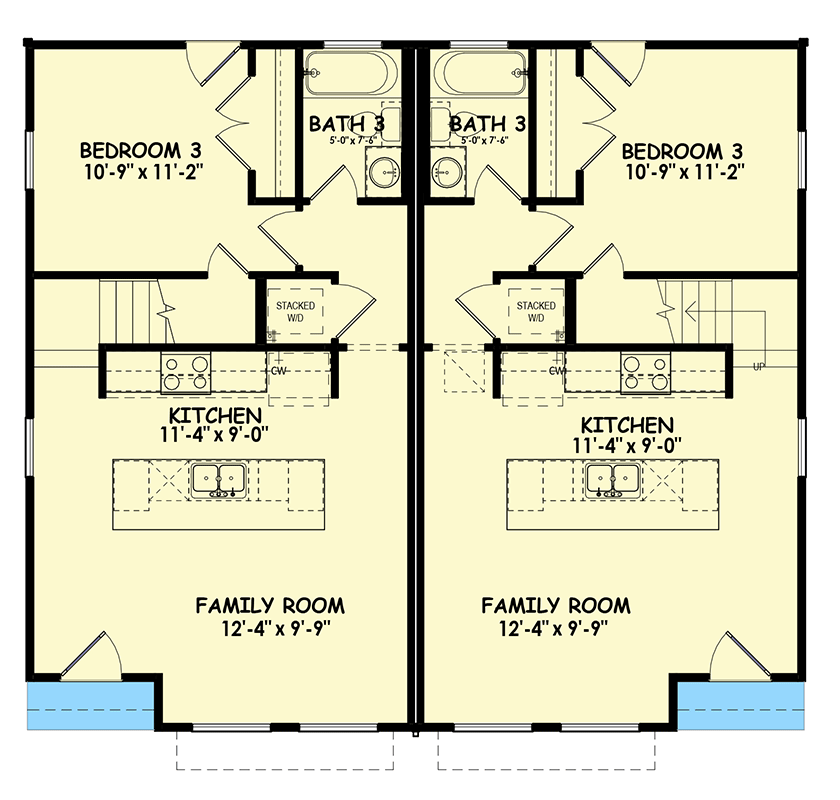

Main Level
2nd Floor
Plan Details

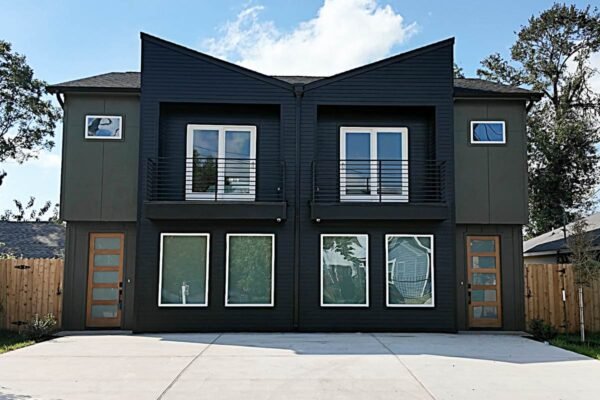

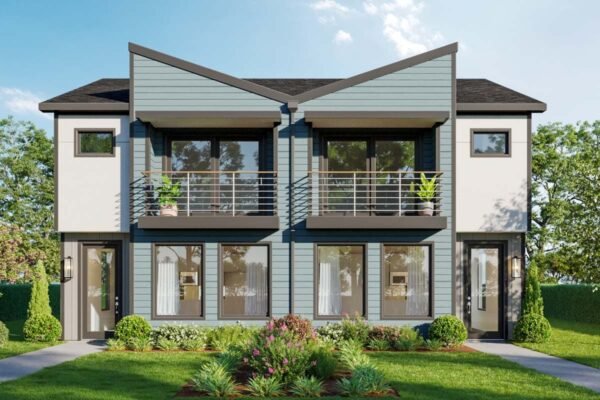

- This modern duplex house plan gives you matching 2-story units, each with 3 beds and 3 baths. Each unit has 2,594 square feet of heated living with 1,308 square feet on the main floor and 1,286 square feet on the second floor.

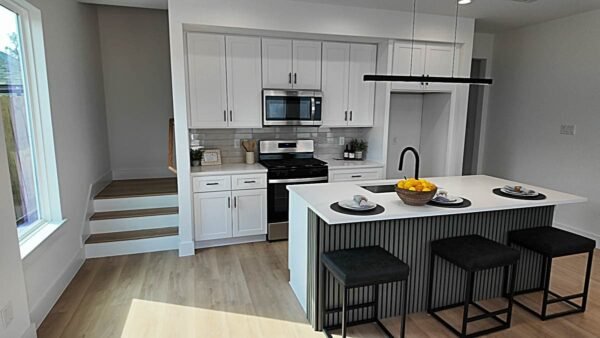

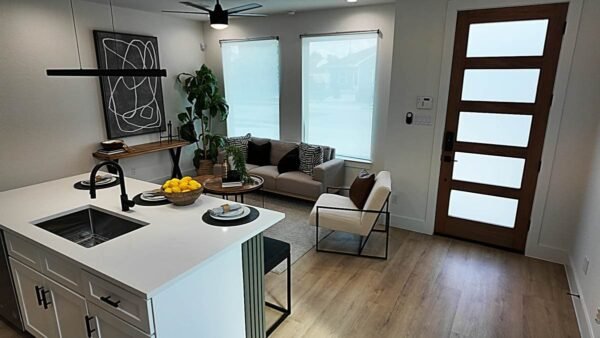

- The front of the home is open concept and gives you a family room open to the kitchen. Bed 3 is in back and has access to a hall bath. Laundry is located steps away.

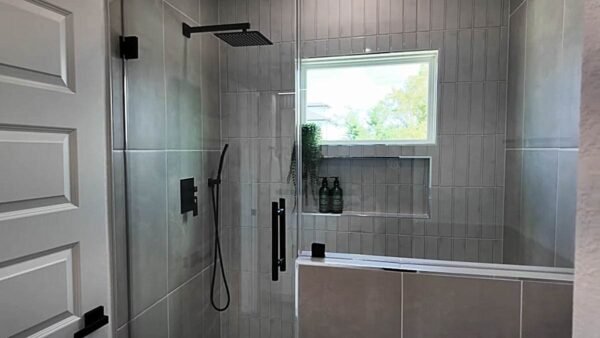

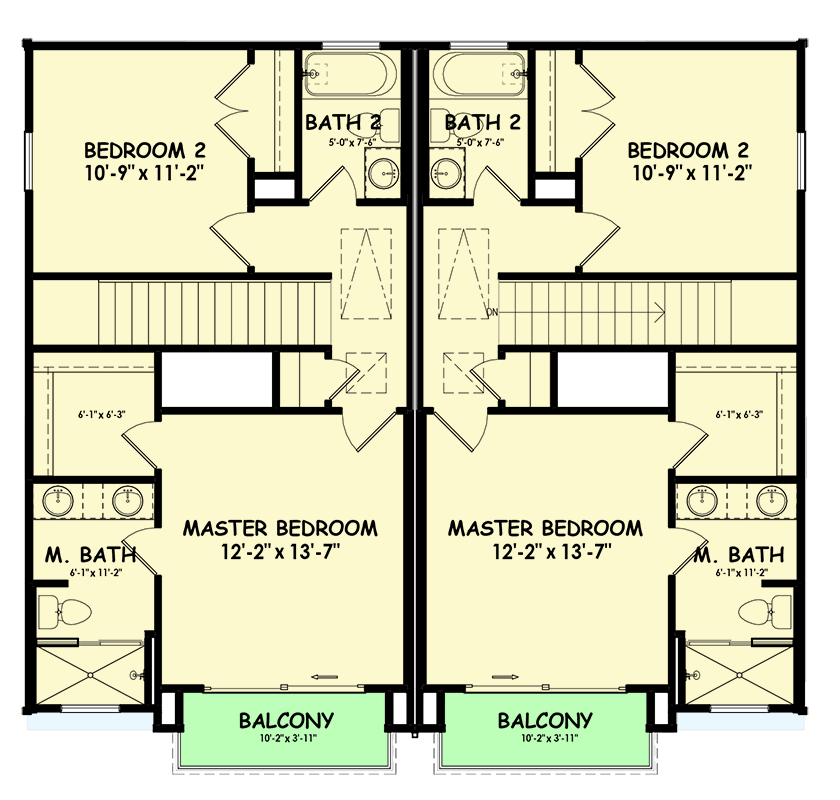

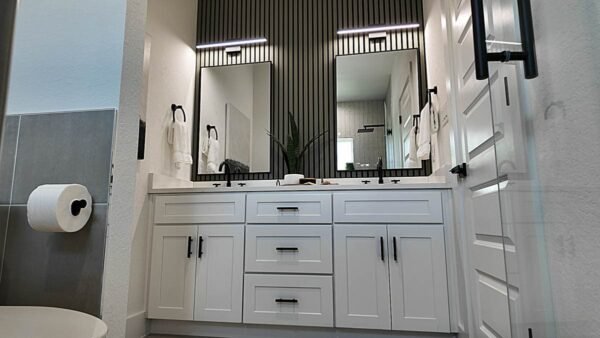

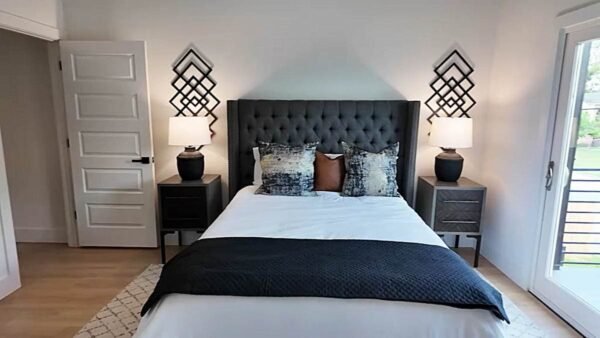

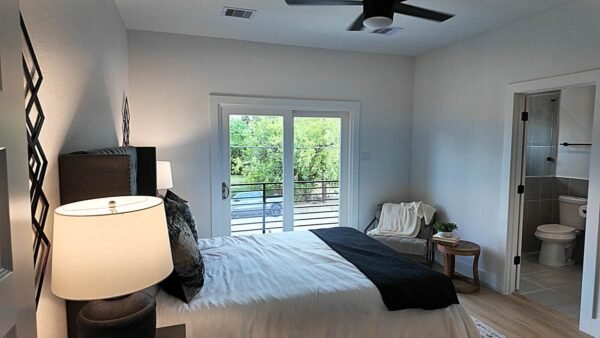

- Upstairs, the master suite is in front and has a private balcony (10’2″ by 3’11”) and a bathroom with two vanities and a walk-in shower. Bed 2 is in back and has access to a hall bath.
- Architectural Designs curates and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
- We can modify this house plan (and any you see on our site). Learn more about modifications.
What’s Included
- Cover sheet with area, door & window schedules
- Dimensioned floorplans with general notes, window & door sizes
- Interior cabinet elevation
- Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
- Roof plan (Birdseye view with pitches)
- Cornice details

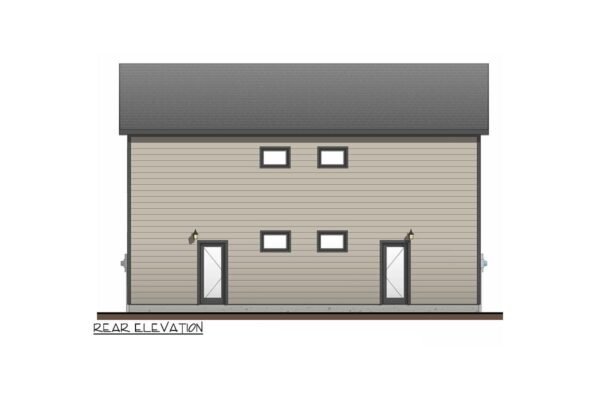

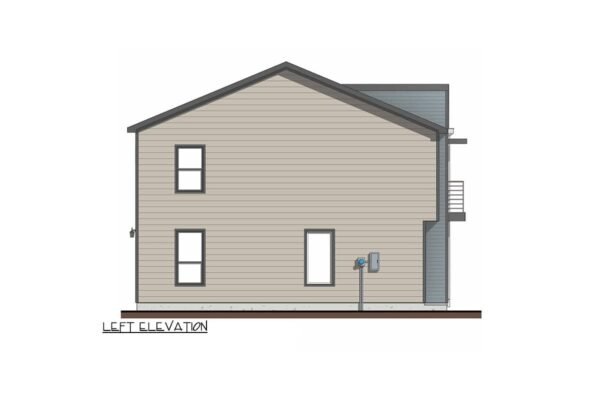

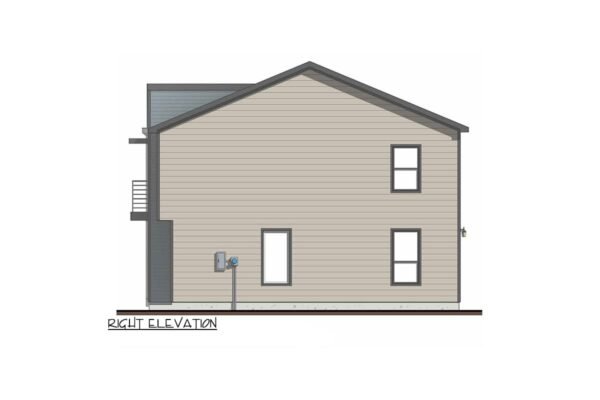

- Exterior elevations (4 sides)
- Building sections (if applicable)
- Electrical plans
What’s Not Included
- Architectural or Engineering Stamp – handled locally if required
- Site Plan – handled locally when required
- Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
- REScheck or other energy related calculations are NOT included.
- Wind load or seismic calculations are NOT included.
- Framing plans or beam sizes are NOT included.
- Other specific drawings that your local permit office may require
