Floor Plan

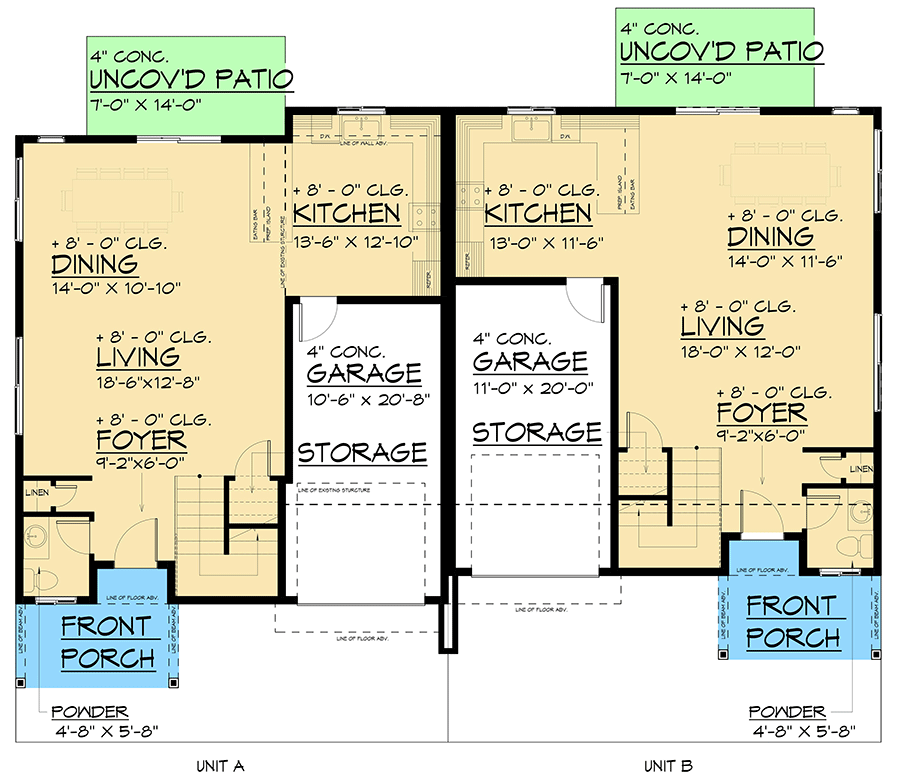

Main Level

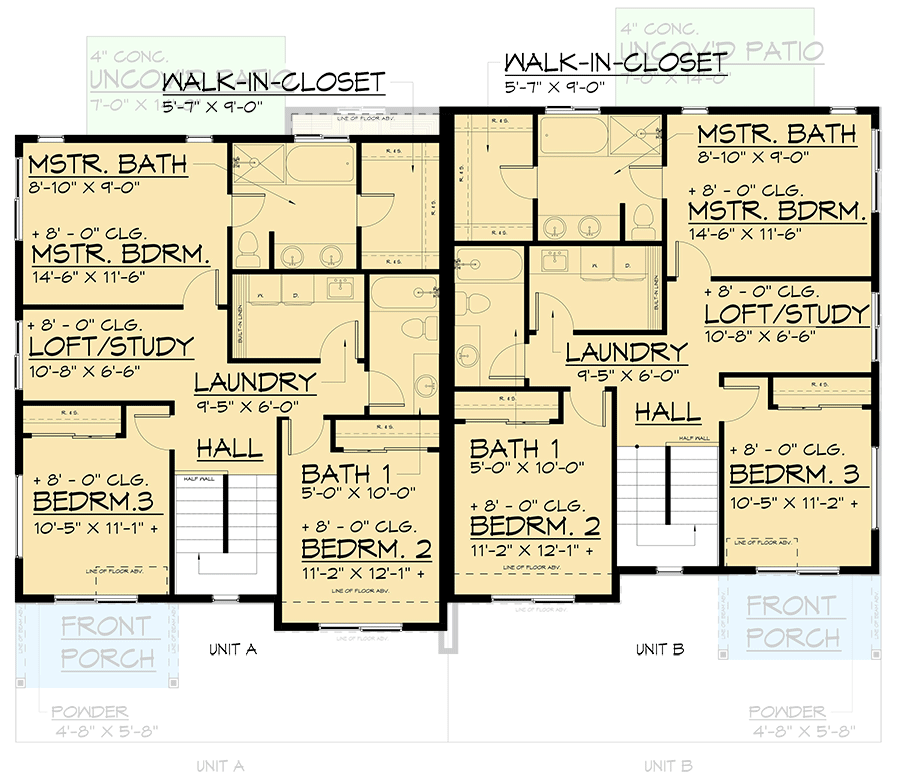

2nd Floor
Plan Details
- This contemporary modern duplex house plan gives you two units each with 3 bed, 2.5 bath and 1 car garage.

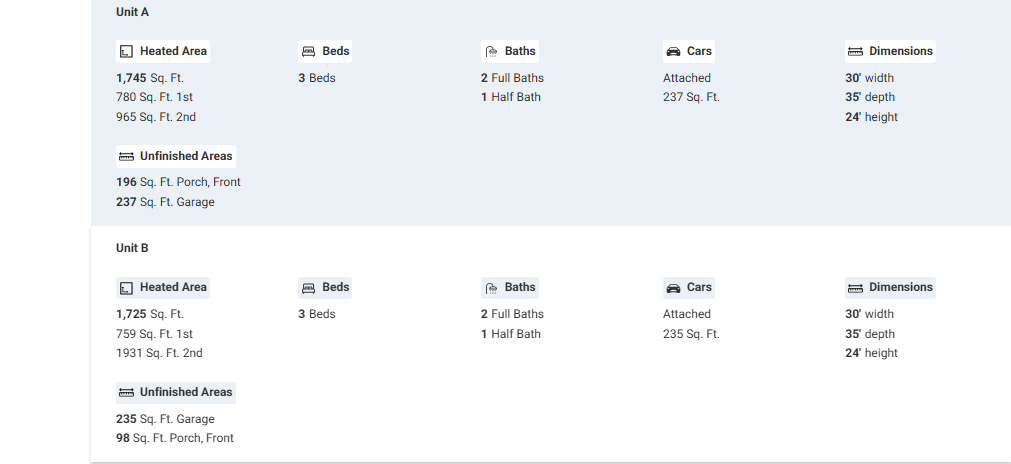

- Unit A gives you 1,745 sq ft of living (780 sq ft on the main floor and 965 sq ft on the second floor).
- Unit B gives you 1,725 sq ft of living (759 sq ft on the main floor and 966 sq ft on the second floor).
- We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
What’s Included
- Cover Sheet with plan info
- General Notes – Note: codes will not include local state adopted amendments

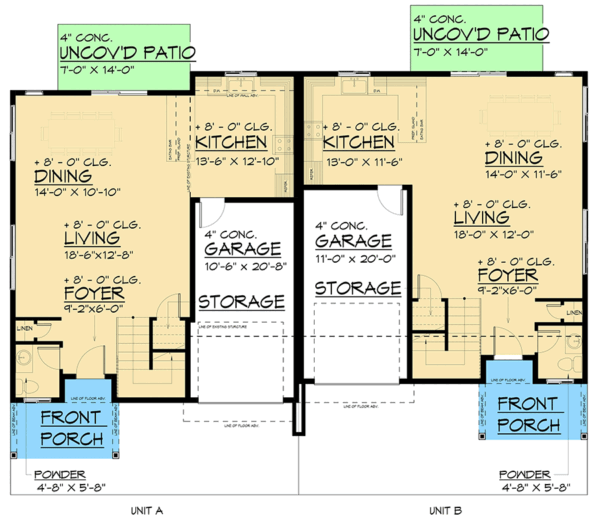

- Fully dimensions and detailed floor plans

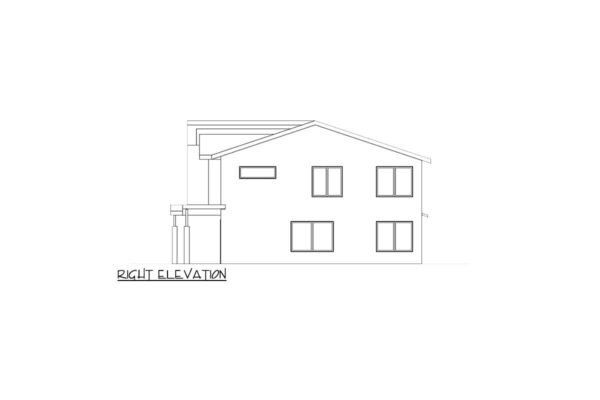

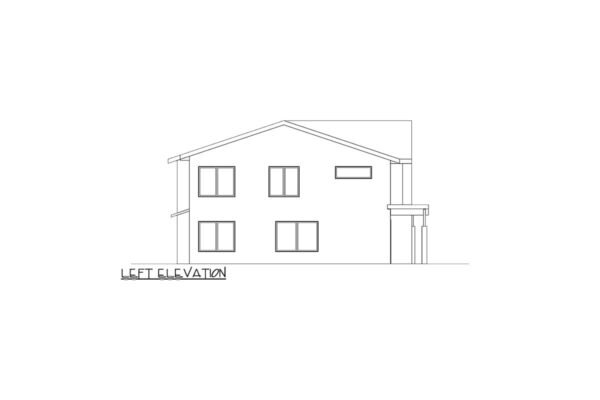

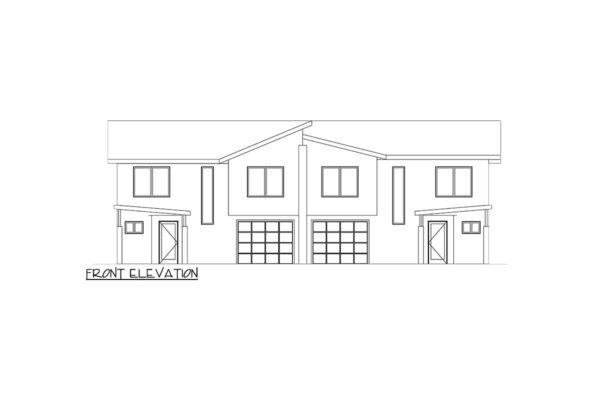

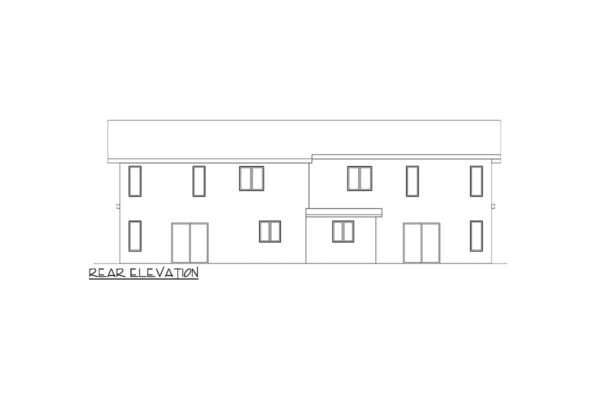

- Elevations
- Building Cross Section
- Roof Plan
- Details
- Window Schedule
- Original Structural plan FOR REFERENCE ONLY
What’s Not Included
- Architectural or Engineering Stamp – handled locally when required
- Site plans – handled locally – handled locally when required
- Mechanical Drawings – handled locally when required
- Plumbing Drawings – handled locally when required
- Electrical Drawings – handled locally when required
- Energy Calculations – handled locally when required
- Foundation and Framing plans – handled locally when required
