3-Car Garage with 800 Square Foot Apartment Above

Original price was: $540.00.Current price is: $459.00.

Square Footage Breakdown

Total Heated Area：814 sq. ft.

2nd Floor：814 sq. ft.

Beds/Baths

Bedrooms：1

Full bathrooms：1

Foundation Type

Standard Foundations：Slab

Exterior Walls

Exterior Walls：2×4

Optional Type(s)：2×6

Dimensions

Width：42′ 4″

Depth：24′ 6″

Max Ridge Height：29′ 11″

Garage

Area：1019 sq. ft.

Count：3 Cars

Entry Location：Front

Ceiling Heights

First Floor：12′

Second Floor：11′

SKU: Plan 25791GE Category:

Floor Plan

Main Level

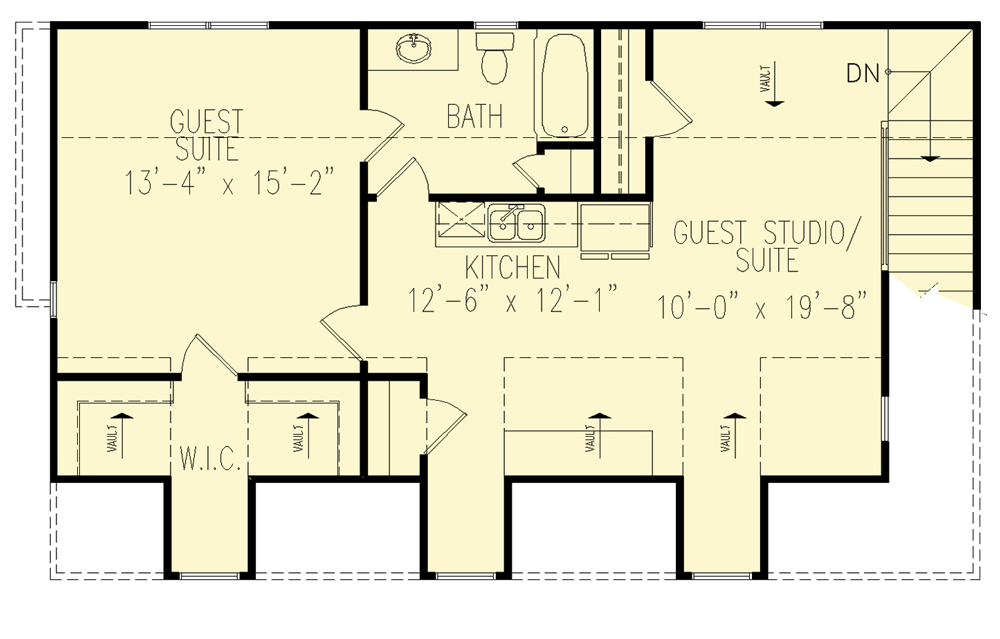

2nd Floor

Plan Details

  • This 3-car detached garage (each of the bays has a 8′ by 10′ overhead door) gives you 1,019 square feet of parking on the ground level and an 814 square foot apartment above.
  • Stairs run inside the the right side of the garage and take you to the apartment above. The kitchen is in the middle of the floor and it opens to a living room or studio space that gets light from the dormers.
  • The bedroom has a dormer with open closet space on each side.

What’s Included

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

What’s Not Included

  • Architectural or Engineering Stamp – handled locally if required
  • Framing plans
  • Site Plan – handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
  • Energy calculations – handled locally when required
