Floor Plan
Main Level
2nd Floor
Plan Details
- This 3-car Craftsman-style detached garage plan has wood garage doors and shake siding combined with stone giving it a definitive Craftsman facade.

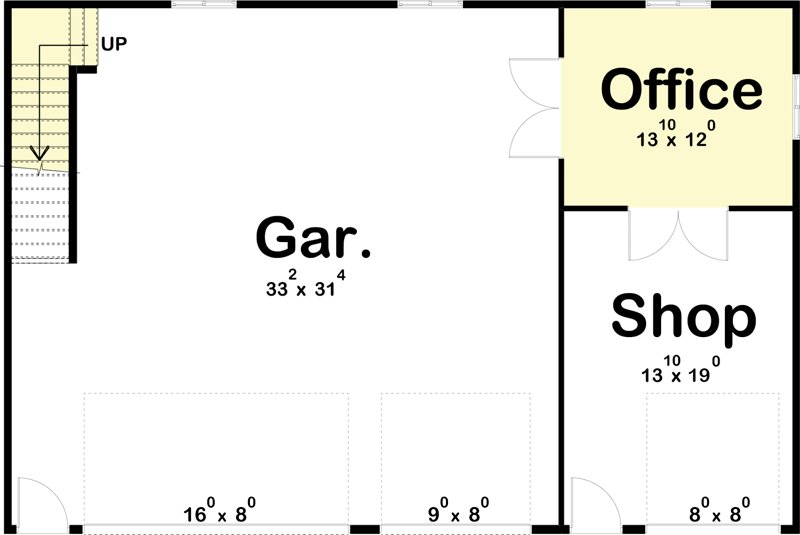

- On the left side, there is a 3-car garage that features a 2-car bay and a 1 car bay. On the right side, there is a shop that leads to an office through a set of french doors.

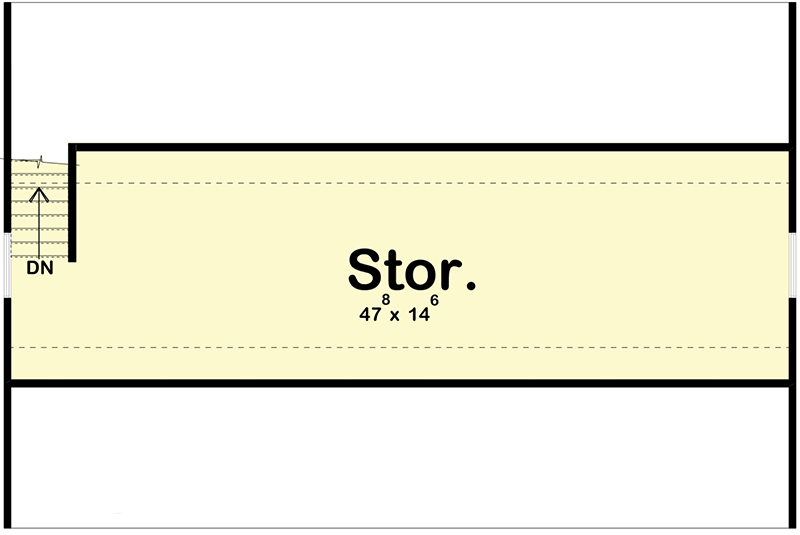

- On the second floor, you get a ton of storage space.
What’s Included
- Cover Sheet: Shows the front elevation and typical notes and requirements.
- Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
- Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
- Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
- Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan’s details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
- Roof Plan
- Typical Wall Section
- Typical Stair Section (if applicable)
- Cabinets Elevations (if applicable)
What’s Not Included
- Architectural or Engineering Stamp – handled locally if required
- Site Plan – handled locally when required
- Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
- Energy calculations – handled locally when required
