3-Bed Transitional European House Plan with Vaulted Dining Area – 2703 Sq Ft

Original price was: $1,680.00.Current price is: $1,428.00.

Square Footage Breakdown

Total Heated Area:2,703 sq. ft.

1st Floor:2,703 sq. ft.

Optional Lower Level:2,007 sq. ft.

Porch, Combined:231 sq. ft.

Storage:569 sq. ft.

Beds/Baths

Bedrooms:3, 4, or 5

Full bathrooms:2 or 3

Half bathrooms:1

Foundation Type

Standard Foundations:Slab

Optional Foundations:Basement, Crawl, Walkout

Exterior Walls

Exterior Walls:2×4

Optional Type(s):2×6

Dimensions

Width:100′ 0″

Depth:53′ 0″

Max Ridge Height:26′ 1″

Garage

Type:Attached

Area:852 sq. ft.

Count:3 Cars

Entry Location:Side

Ceiling Heights

First Floor:10′

Roof Details

Primary Pitch:10 on 12

Secondary Pitch:14 on 12

Framing Type:Stick

SKU: Plan 623216DJ Category:

Floor Plan

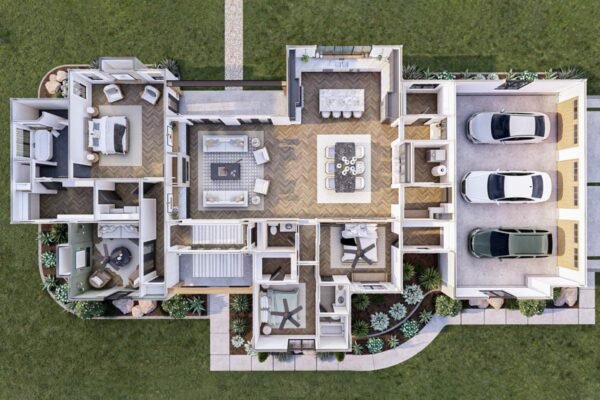

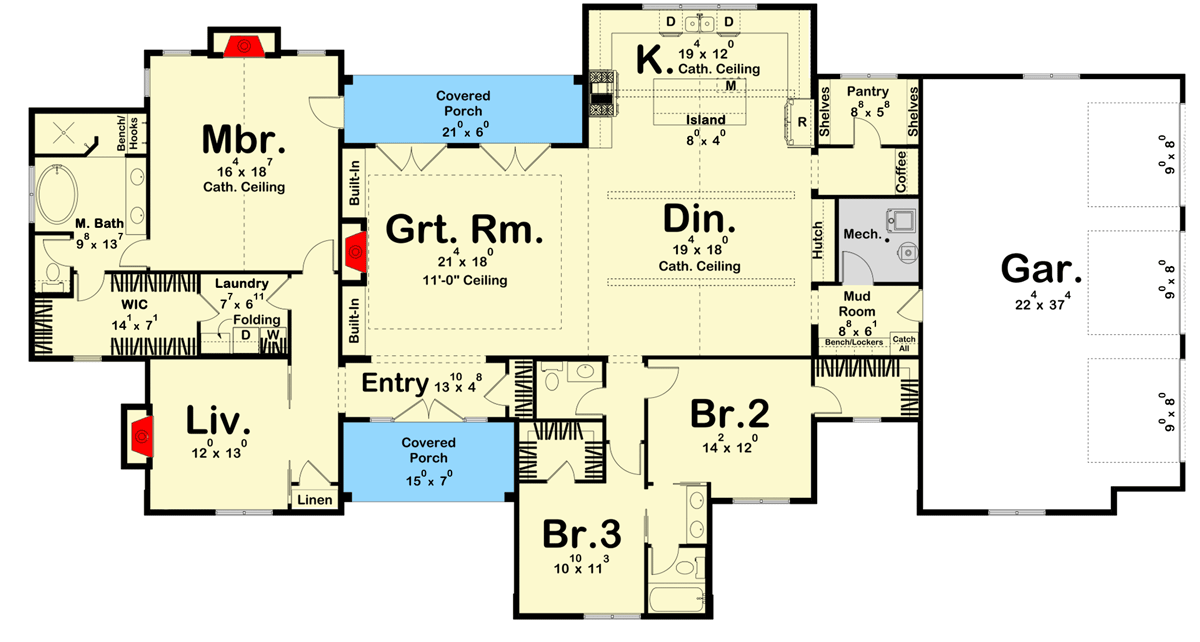

Main Level

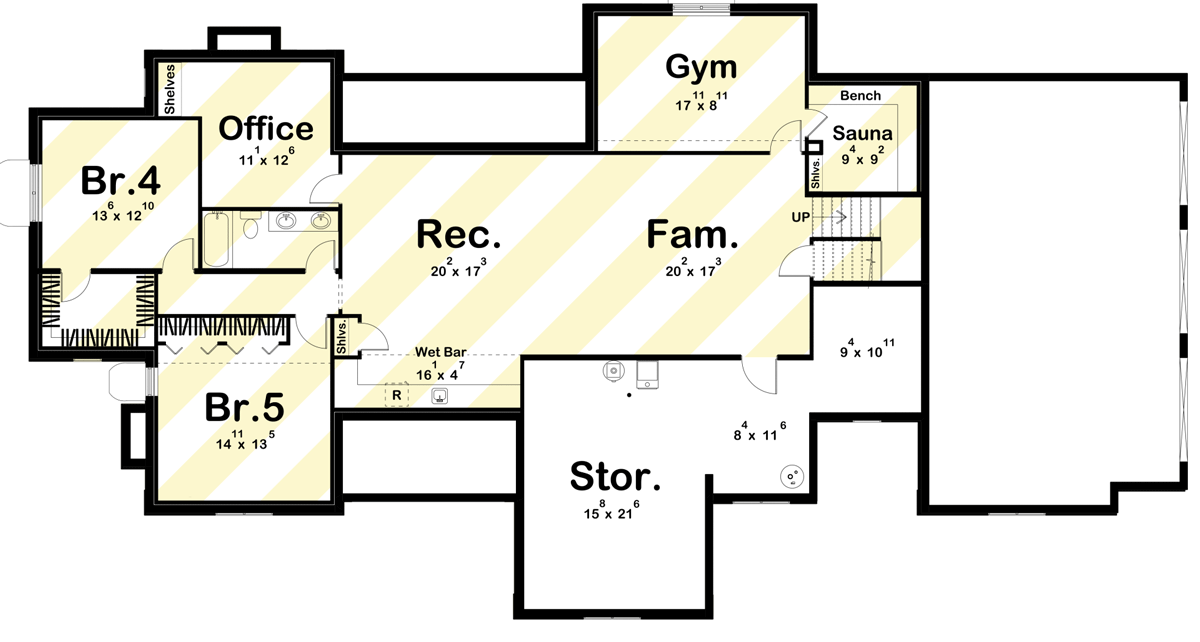

Optional Lower Level Layout ($ Paid Option)

Plan Details

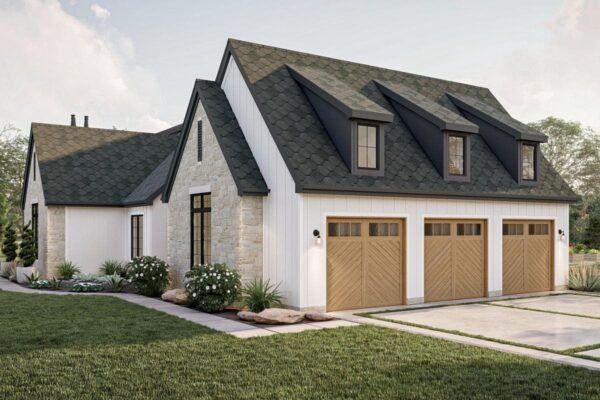

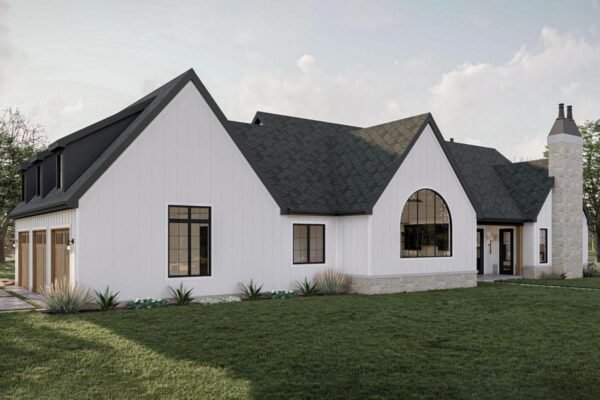

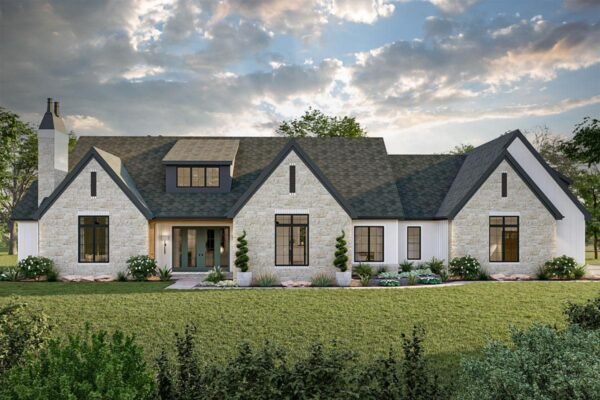

  • This beautiful 3-Car Modern European Cottage style house plan. The steep pitches, short gable overhangs, and wood accents give this home amazing curb appeal.

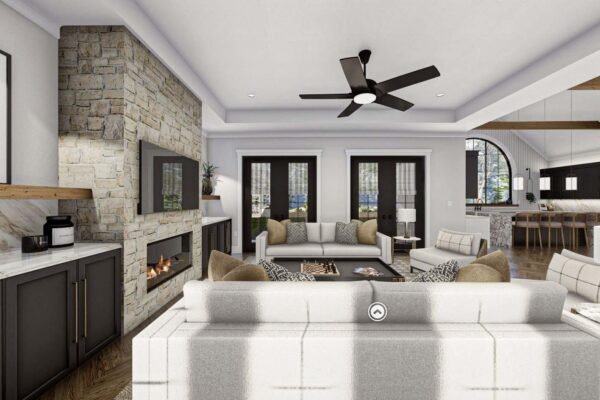

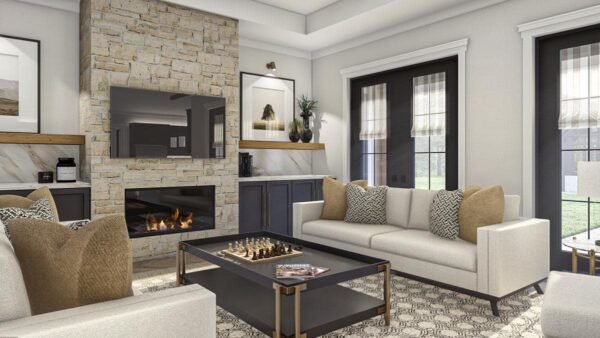

  • On the inside ofthis Transitional house plan you will find a large great room with a tray ceiling. The dining room and kitchen are covered by a cathedral ceiling with faux wood beams. The large kitchen sink arched window looks out to the rear of the home, bringing in ample amounts of sunlight. A walk-in pantry and coffee bar are just off the kitchen.

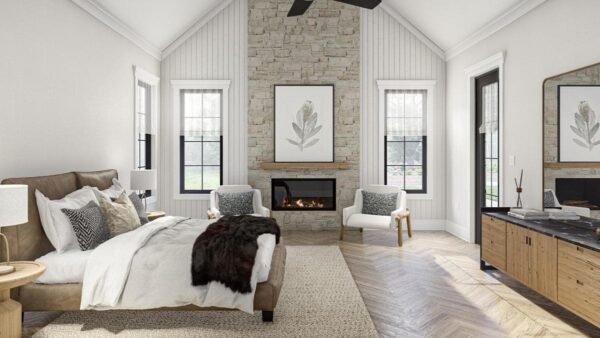

  • Secondary bedrooms share a Jack-and-Jill bath while the master bedroom has its own. The master bedroom is covered by a soaring cathedral ceiling and has a built-in fireplace. The master walk-in closet connects to both the bathroom and the laundry room.

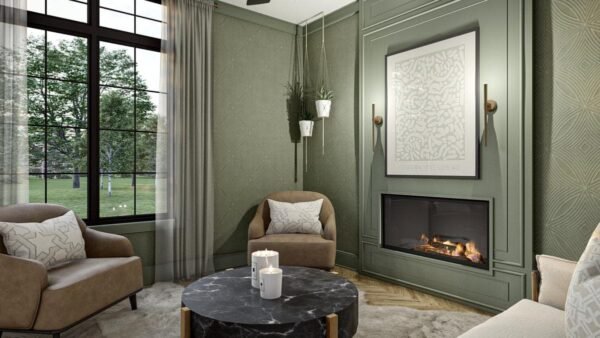

  • A separate living room near the entry could be used as an office or any flex space.
  • Related Plans: Get a larger version with a mini-master suite with house plan 623,419 DZD(3,248 sq. ft.), get larger version with a front entry 2-car garage, an RV garage bay, and a second family room with houseplan 623332DJ (3,164 sq. ft.) and get a larger version with a finished upstairs and an attached pool house with 623554DJ (3,451 sq. ft.) or a larger version with a finished second level with house plan 623606DJ (3,541 sq. ft.).

What’s Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan’s details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)

What’s Not Included

  • Architectural or Engineering Stamp – handled locally if required
  • Site Plan – handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
  • Energy calculations – handled locally when required
